There’s really no way to put a nice face on it: the ARM resource documentation is a dumpster fire. Engineers d’un certain age will recall the TechNet documentation in all its verbose, exhaustive glory. We didn’t know how good we had it, then.
If you’ve ever tried to generate a Bicep module competely from scratch using the resource references, you know the frustration: is this a state property or a settable property? Is it required? What’s the default? Does it only accept certain values? What values?
As I said:
This often leads to DevOps engineers giving up on the docs and just creating the thing they want in the portal and then exporting the resulting deployment template. That’s fine, but in some cases Azure resources can take 45 minutes to instantiate and you’ve got work to do.
As mentioned in Part I of this series, every time you add or modify resources in the Azure portal an ARM template is generated and used. The trick is that you can access that template without having to actually fire off the deployment.

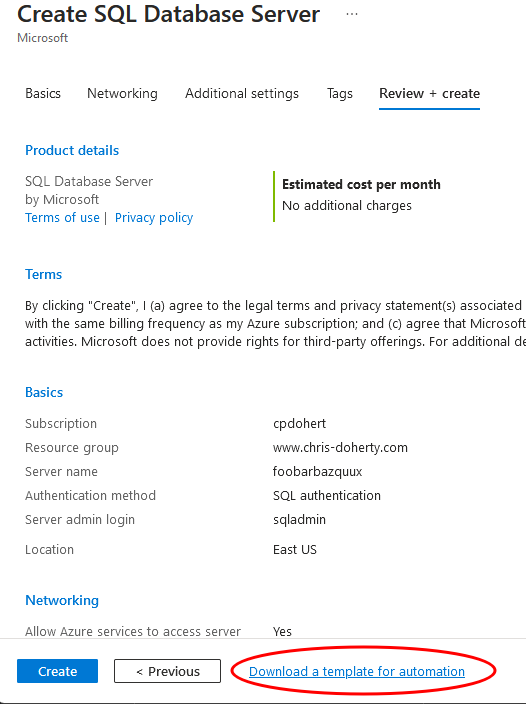

Go through the usual deployment process in the portal, but stop before hitting the Create button. Right next to it there’s a link to download an automation template:
That gives you the following ARM template, without having to actually instantiate anything:
{
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"administratorLogin": {
"type": "string",
"defaultValue": ""
},
"administratorLoginPassword": {
"type": "securestring",
"defaultValue": ""
},
"administrators": {
"type": "object",
"defaultValue": {}
},
"location": {
"type": "string"
},
"serverName": {
"type": "string"
},
"enableADS": {
"type": "bool",
"defaultValue": false
},
"useVAManagedIdentity": {
"type": "bool",
"defaultValue": false,
"metadata": {
"description": "To enable vulnerability assessments, the user deploying this template must have an administrator or owner permissions."
}
},
"vaStoragelessEnabled": {
"type": "bool",
"defaultValue": false,
"metadata": {
"description": "Flag for enabling vulnerability assessments with express configuration (storage less), the user deploying this template must have administrator or owner permissions."
}
},
"publicNetworkAccess": {
"type": "string",
"defaultValue": ""
},
"minimalTlsVersion": {
"type": "string",
"defaultValue": ""
},
"allowAzureIps": {
"type": "bool",
"defaultValue": true
},
"enableVA": {
"type": "bool",
"defaultValue": false
},
"serverTags": {
"type": "object",
"defaultValue": {}
}
},
"variables": {
"subscriptionId": "[subscription().subscriptionId]",
"resourceGroupName": "[resourceGroup().name]",
"uniqueStorage": "[uniqueString(variables('subscriptionId'), variables('resourceGroupName'), parameters('location'))]",
"storageName": "[tolower(concat('sqlva', variables('uniqueStorage')))]",
"uniqueRoleGuid": "[guid(resourceId('Microsoft.Storage/storageAccounts', variables('storageName')), variables('storageBlobContributor'), resourceId('Microsoft.Sql/servers', parameters('serverName')))]",
"StorageBlobContributor": "[subscriptionResourceId('Microsoft.Authorization/roleDefinitions', 'ba92f5b4-2d11-453d-a403-e96b0029c9fe')]"
},
"resources": [
{
"condition": "[parameters('enableVA')]",
"type": "Microsoft.Storage/storageAccounts",
"apiVersion": "2019-04-01",
"name": "[variables('storageName')]",
"location": "[parameters('location')]",
"sku": {
"name": "Standard_LRS"
},
"kind": "StorageV2",
"properties": {
"minimumTlsVersion": "TLS1_2",
"supportsHttpsTrafficOnly": "true",
"allowBlobPublicAccess": "false"
},
"resources": [
{
"condition": "[parameters('useVAManagedIdentity')]",
"type": "Microsoft.Storage/storageAccounts/providers/roleAssignments",
"apiVersion": "2018-09-01-preview",
"name": "[concat(variables('storageName'), '/Microsoft.Authorization/', variables('uniqueRoleGuid') )]",
"dependsOn": [
"[resourceId('Microsoft.Sql/servers', parameters('serverName'))]",
"[resourceId('Microsoft.Storage/storageAccounts', variables('storageName'))]"
],
"properties": {
"roleDefinitionId": "[variables('StorageBlobContributor')]",
"principalId": "[reference(resourceId('Microsoft.Sql/servers', parameters('serverName')), '2018-06-01-preview', 'Full').identity.principalId]",
"scope": "[resourceId('Microsoft.Storage/storageAccounts', variables('storageName'))]",
"principalType": "ServicePrincipal"
}
}
]
},
{
"type": "Microsoft.Sql/servers",
"apiVersion": "2020-11-01-preview",
"name": "[parameters('serverName')]",
"location": "[parameters('location')]",
"properties": {
"version": "12.0",
"minimalTlsVersion": "[parameters('minimalTlsVersion')]",
"publicNetworkAccess": "[parameters('publicNetworkAccess')]",
"administratorLogin": "[parameters('administratorLogin')]",
"administratorLoginPassword": "[parameters('administratorLoginPassword')]"
},
"identity": "[if(and(parameters('enableVA'),parameters('useVAManagedIdentity')), json('{\"type\":\"SystemAssigned\"}'), json('null'))]",
"tags": "[parameters('serverTags')]",
"resources": [
{
"condition": "[parameters('allowAzureIPs')]",
"type": "firewallRules",
"apiVersion": "2021-11-01",
"name": "AllowAllWindowsAzureIps",
"location": "[parameters('location')]",
"dependsOn": [
"[resourceId('Microsoft.Sql/servers', parameters('serverName'))]"
],
"properties": {
"endIpAddress": "0.0.0.0",
"startIpAddress": "0.0.0.0"
}
},
{
"condition": "[parameters('enableADS')]",
"type": "advancedThreatProtectionSettings",
"apiVersion": "2021-11-01-preview",
"name": "Default",
"dependsOn": [
"[resourceId('Microsoft.Sql/servers', parameters('serverName'))]"
],
"properties": {
"state": "Enabled"
}
},
{
"condition": "[parameters('enableVA')]",
"type": "vulnerabilityAssessments",
"apiVersion": "2018-06-01-preview",
"name": "Default",
"dependsOn": [
"[concat('Microsoft.Sql/servers/', parameters('serverName'))]",
"[concat('Microsoft.Storage/storageAccounts/', variables('storageName'))]",
"[concat('Microsoft.Sql/servers/', parameters('serverName'), '/advancedThreatProtectionSettings/Default')]"
],
"properties": {
"storageContainerPath": "[if(parameters('enableVA'), concat(reference(resourceId('Microsoft.Storage/storageAccounts', variables('storageName'))).primaryEndpoints.blob, 'vulnerability-assessment'), '')]",
"storageAccountAccessKey": "[if(and(parameters('enableVA'),not(parameters('useVAManagedIdentity'))), listKeys(variables('storageName'), '2018-02-01').keys[0].value, '')]",
"recurringScans": {
"isEnabled": true,
"emailSubscriptionAdmins": false
}
}
},
{
"condition": "[parameters('vaStoragelessEnabled')]",
"type": "sqlVulnerabilityAssessments",
"apiVersion": "2022-02-01-preview",
"name": "Default",
"dependsOn": [
"[resourceId('Microsoft.Sql/servers', parameters('serverName'))]"
],
"properties": {
"state": "Enabled"
}
}
]
}
]
}
Final Caveat Link to heading
Of course, this method will only catch those properties that you can set on instantiation. More complex configuration of child resources that the portal will only allow you to perform post-instantiation won’t be reflected here.
